DN15-50mm, threads end
DN50-500, Flanged end
Woltmann
Combine
Irrigation
Accessories

Irrigation

WIH/LA-65~200E (with pulser)


This type of water meter also can be used for a remote reading transmission system as equipped with a built-in sensor.
APPLICATION: To totalize the total volume of cold (hot) water passing through the pipeline.
WORKING CONDITION:
The max.admissible water pressure: 1.0MPa.
Water temperature: 0.1℃~50℃.
FEATURES:
--The water meters of this series were especially designed to give a reliable measurement of waters carrying also solid particles。
--Head lose of the meters are negligible, enabling efficient operation to be maintained where only a limited head of water is available。
--The body and cap flange are coated by an epoxy varnish treatment to insure better anticorrosive effect during long service time; Capsulated counter can give clear reading even when the water is not very clean; Reed contact for remote reading can supplied upon request。
--The self-cleaning propeller of three blade design avoids clogging by grass or other solid particles held in the water。
--The measuring mechanism is robust in construction with few moving parts subject to wear, and can be easily removed for inspection and maintenance。 --The meters are very suitable for irrigated water and can be employed also for intermittent or seasonal services.
Maximum permissible error:
From Transitional flow up to Maximum flow both  inclusive: ± 2%;
From Minimum flow inclusive up to Transitional flow :± 5%。

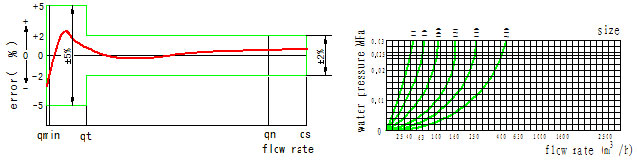

FLOW-ERROR CURVE   PRESURE LOSS-ERROR CURVE
DIMENSIONS AND WEIGHTS

Size

Length
L

Height
H

Width
B

Outer Diameter
D1

Bolt Circle Diameter D2

Connecting Bolt

Weight

mm

n-Md

Kg

65

250

222

185

185

145

4-M16

14.65

80

300

245

200

200

160

8-M16

16.7

200

234

14.17

100

370

265

200

220

180

8-M16

26.7

200

256

18.7

125

400

283

250

250

210

8-M16

29.6

150

450

360

296

285

240

8-M20

58.56

200

500

411

340

340

295

8-M20

76.06


MAIN TECHNICAL DATA

Size
mm

CLASS

Maximum
flow

Nominal
flow

Transitional
flow

Minimum
Flow

Minimum
Reading

Maximum
Reading

m3/h

m3

65

A

50

25

9.0

7.0

0.01

999999

B

7.5

6.0

80

A

70

35

14

8.5

0.01

999999

B

12

7.0

100

A

120

60

22

11.0

0.01

999999

B

18

9.0

125

A

160

80

36

14

0.01

999999

B

30

12

150

A

270

150

54

19

0.1

9999999

B

45

16

200

A

400

290

90

26

0.1

9999999

B

75

22


BOUNDARY DIMENSION
